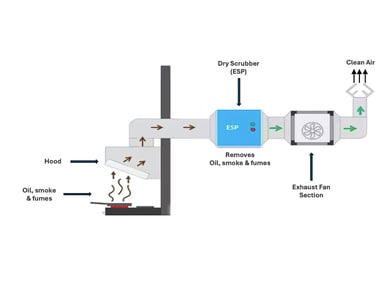

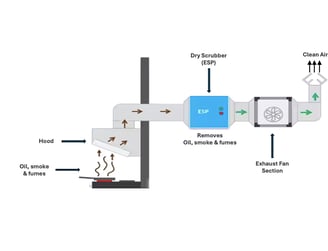

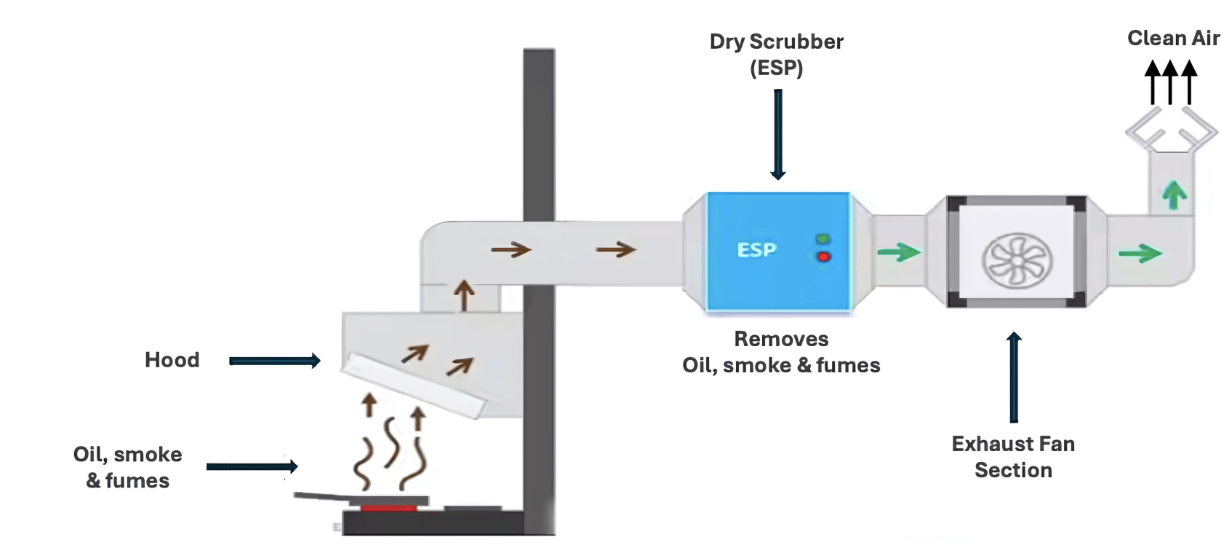

Kitchen Exhaust System Schematic

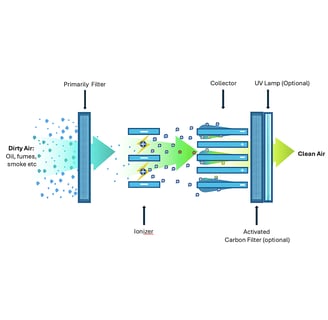

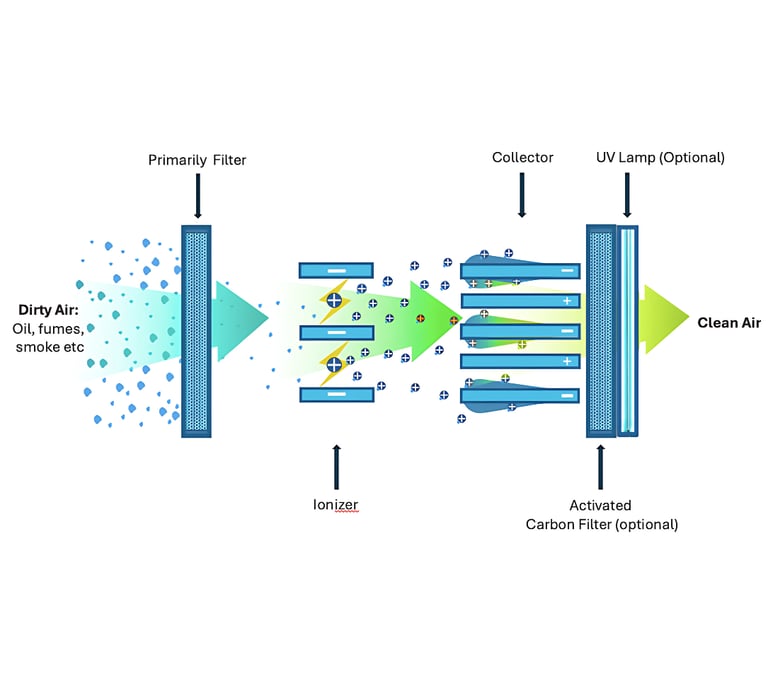

Stage 1: Wire mesh filter

Dirty air will pass from primarily wire mesh filter; this will trap large particles of pollutants. Smaller particles will pass through this filter and will enter ionizer.

Stage 2: Ionization (Ionizer Section)

Polluted air passes through ionizing electrodes and particles as small as 0.1µm will be positively charged and will move forward towards collector.

Stage 3: Collection (Collector Plates)

In collection section many parallel collection plates are negatively charged, the positively charged particles coming from ionizer will get attracted to these collector plates, where they stick and build up.

Stage 4: Activated Carbon Filter (Optional)

Activated carbon filter helps in removing odours from cleaned air & will deliver fresh air.

Stage 5: UV Lamps (Optional)

Ultraviolet (UV) lamps can be used in kitchen exhaust systems after an electrostatic precipitator (ESP) to reduce grease buildup and eliminate odours.

How it Works?
